Progressive Press

/data/prod/gallery/1555407086_umx_600px.jpg

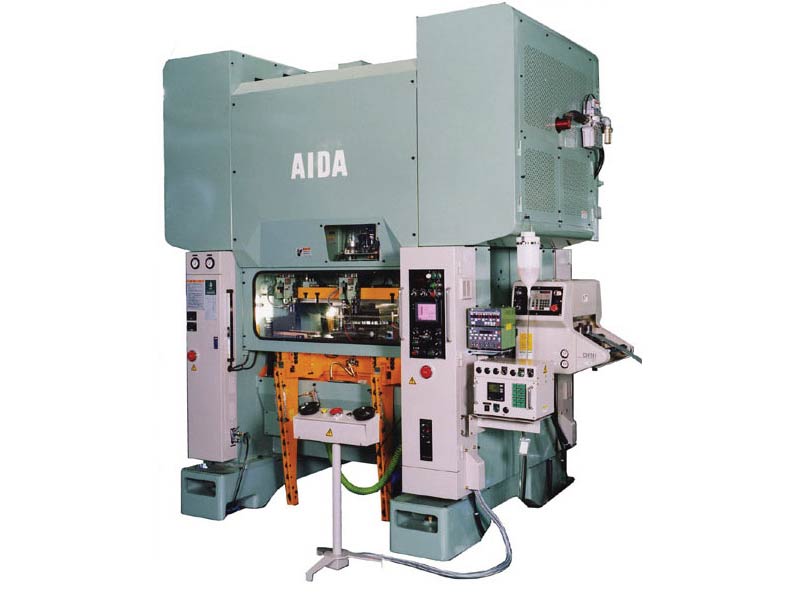

Progmax UMX Progressive Die Press

Gives metal stampers an advantage when dealing with the production of small precision parts from thin material

Two-point suspension and Highly rigid straightside frame construction that enable highly precise presswork

Ask AIDA

Product Description

Outline

Advantages

Processing with high precision while ensuring productivity and economy; high added-value press
High rigid double-point closed frame guarantees high accuracy in stamping. 6-angle long slide guide is efficient in reducing eccentric load
Widely used in manufacturing machines, electronic and information equipments, communication equipments as well as bearing-relevant parts

Specification

Model		UMX-600		UMX-800			UMX-1100
		1	2	1		2	1	2
Capacity	(kN)	60 (588)		80 (784)			110 (1078)
Rated Tonnage Point Above BDC	(mm)	2.3	1.6	2.3		1.6	2.3	1.6
Stroke Length	(mm)	50	80	50	60	80	60	80
Continuous Work Energy at 100 spm	(kg f-m)	200		200			300
Strokes Per Minute Under No Load	(spm)	100 to 250	70 to 200	90 to 240	80 to 220	70 to 200	70 to 200	60 to 180
Micro-inching	(spm)	Approx. 20		Approx. 20			Approx. 20
Die Height	(mm)	315	300	315	310	350	360	350
Slide Adjustment	(mm)	45	30	45	40	30	40	30
Slide Area (L.R. x F.B.)	(mm)	950 x 420		950 x 420		1200 x 520	1200 x 520
Bolster Area (L.R. x F.B.)	(mm)	950 x 450		950 x 450		1200 x 550	1200 x 550
Bolster Thickness	(mm)	130		130		140	140
Counterbalance Capacity (Max. Upper Die Height)	(kgf)	200		200		350	400
Side Opening (F.B. x Height)	(mm)	400 x 215		400 x 215		450 x 230	450 x 230
Main Motor	(kW)	11		11		15	15
Variable Speed Drive		Inverter Controlled		Inverter Controlled			Inverter Controlled
Required Power Supply	V/Hz	200/50,60		200/50,60			200/50,60
Required Air Supply Pressure	(kgf/cm²[MPa])	6 (0.59)		6 (0.59)			6 (0.59)
