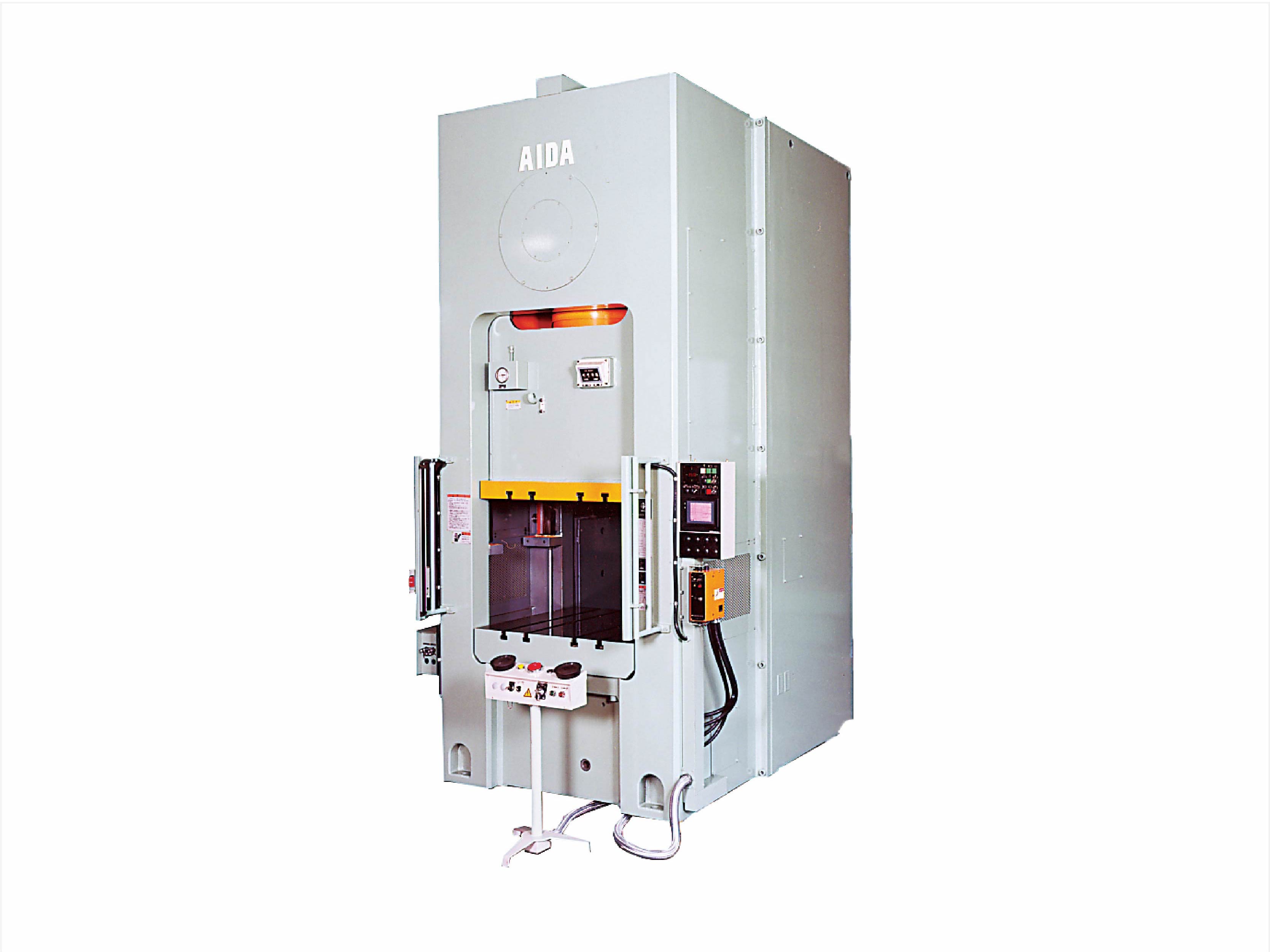

AIDA heavy load forming press is designed to meet the requirements of highly-concentrated heavy load forming or blanking
  • Product Description

Outline
AIDA heavy load forming press is designed to meet the requirements of highly-concentrated heavy load forming or blanking

High-intensity frame structure reduces the deflection slides and bolsters, ensuring high accuracy stamping and extending die life

A special link motion mechanism provides low-speed stamping and high-speed slide return which assures consistent product quality, and greatly reduces the striking of dies, vibrations as well as noises

Further prolong die life so as to maintain stamping precision

Adopt a right-angle eight-point slide guide structure which effectively controls slides’ horizontal displacement and inclination. It has strong resistance against centrifugal force and is helpful to improve accuracy

A compact structure that does not require press pit, thus greatly reducing foundation costs and facilitating press room layout changes; the structure also featured high tolerance of concentrated force


Advantages
  1. Addressing three problems occurred in thick plate processing: die life, vibration and noise
  2. Independently-developed link motion mechanism that touches the die slowly; straightside frame with smallest deflection
  3. Having incorporated O.P and cushion pad for thick plate blanking and drawing
  4. High accuracy, high productivity


Specification
Model Name S1-3000E S1-5000E
Capacity (kN) 3000 5000
Rated tonnage point above BDC (mm) 13 13
Stroke Length (mm) 250 300
Number of strokes (spm) Fixed
(Standard)		 35 30
Variable
(Option)		 15~40 15~35
Die Height (mm) 570 650
Slide Adjustment (mm) 120 120
Slide Area (LR x FB) (mm) 1000 x 900 1200 x 1100
Bolster Area (LR x FB) (mm) 1000 x 985 1200 x 1215
Bolster Thickness (mm) 180 200
Main motor (fixed speed) (kWXp) (VS.30) 22 x 4 (VS.45) 37 x 4
Required air pressure (MPa) 0.5 0.5
Slide knockout capacity (kN) 30 (at 0.5MPa air pressure) 260 (at 0.5 air pressure)
Slide knockout stroke (mm) 100 120
Die cushion capacity

(Air pressure to be boosted to 0.8 by a compressor)		 (kN) 160 (at 0.5 MPa air pressure) 260 (at 0.5 MPa air pressure)
250 (at 0.8 MPa air pressure) 400 (at 0.8 MPa air pressure)
Die cushion stroke length (mm) 110 130
Die cushion pad area (mm) ø 700 ø 870
*The above specifications may be changed without prior notice.
