Multi-Suspension Press MSP
/data/prod/gallery/1556615551_msp-3000.jpg

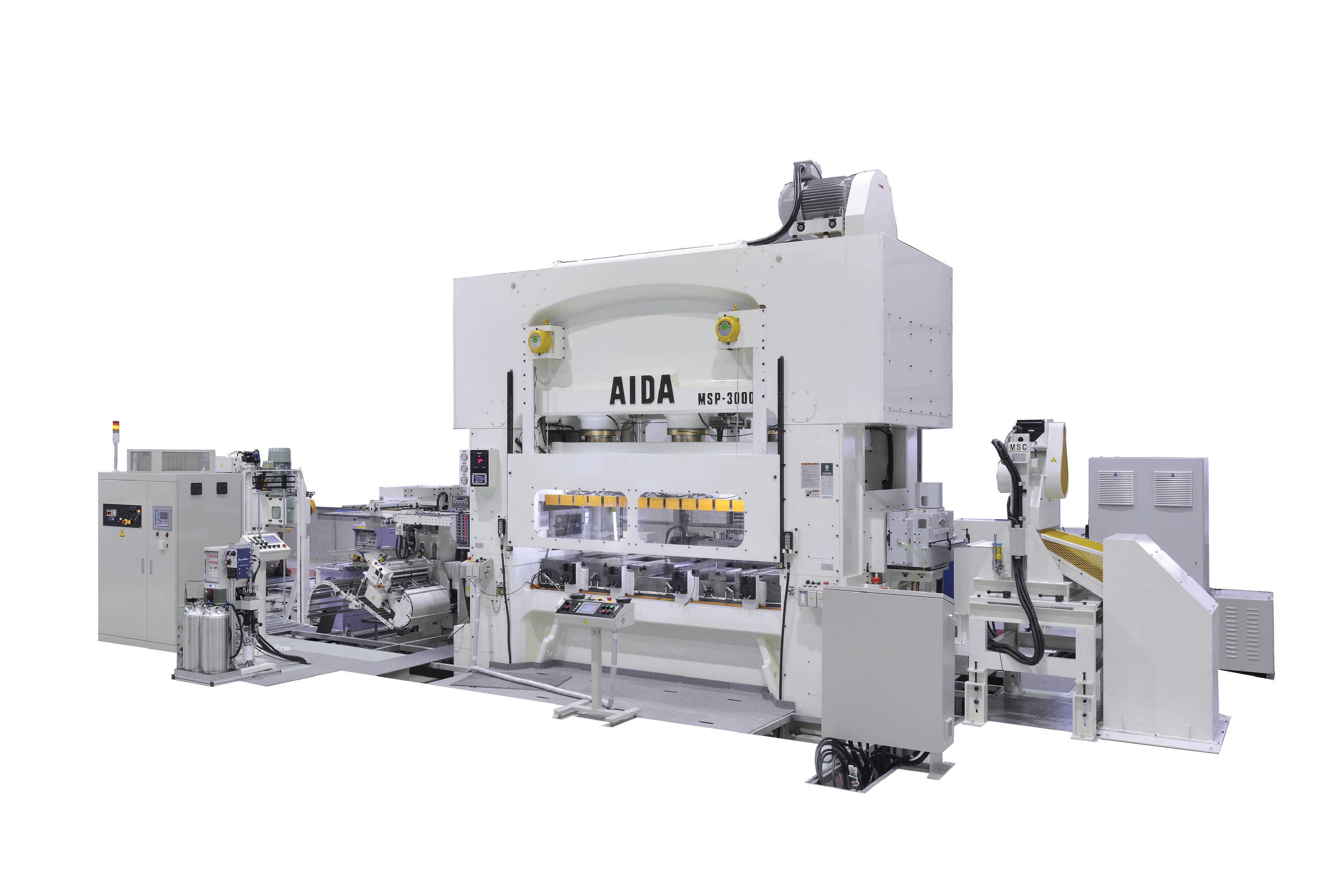

Multi-Suspension Press MSP
Well suited for the ultra precision dies that require large bed areas for the production of high-efficiency motors, such as motors for hybrid cars
  • Product Description

Outline

The AIDA MSP is well suited for the ultra precision dies that require large bed areas for the production of high-efficiency motors, such as motors for hybrid cars or energy conservation.

Features a multiple suspension system which increases the number of suspension points.

This keeps the height of the press relatively low and assures rigidity.

With enhanced dynamic accuracy, die sharpening is reduced and lengthened die life can be expected.


Advantages

  1. 4-point Suspension to prevent slide deformation or inclination
  2. Twin drive structure to reduce crankshaft torch when loaded
  3. Guideposts made by special materials, frame, bearings, multiple suspensions for high precision stamping
  4. Featuring a new type clutch brake (PAT. P.)


Specification

Model MSP-2000-200 MSP-3000-230 MSP-3000-270 MSP-3000-270
Number Of Suspension 4 4 4 4
Capacity (kN) 2000 3000 3000 4000
Tonnage Rating Point (Above D.B.C) (mm) 3.2 3.2 3.2 3.2
Stroke Length (mm) 30 30 30 30
Working Energy: Min.-Max. spm (J) 2000 3000 3000 4000
Strokes Per Minute Under No Load (spm) 150~450 120~420 100~400 100~350
Micro-inching (spm) Approx. 60 Approx. 60 Approx. 60 Approx. 60
Die Height, Slide To Bolster (mm) 400~480 Note 1 420~520 Note 1 420~520 Note 2 500~600 Note 2
Slide Adjustment (mm) 60 60 60 60
Slide Area (L.R. x F.B.) (mm) 2000 x 800 2300 x 800 2700 x 800 2800 x 900
Bolster Area (L.R. x F.B.) (mm) 2000 x 1000 2300 x 1000 2700 x 1000 2800 x 1200
Bolster Thickness (mm) 180~260 Note 1 210~260 Note 1 250~300 Note 2 250~300 Note 2
Max. Upper Die Weight (kg) 1800 Note 2 2000 Note 2 2300 Note 2 2300 Note 2
Side Opening (F.B. x Height) (mm) 490 x die height 490 x die height 490 x die height 980 x die height
Bed Opening (L.R. x F.B.) (mm) 1700 x 400 2000 x 400 2400 x 400 2500 x 500
Main Motor (Inverter) (kW) 22 x 2 30 x 2 30 x 2 37 x 2
Power Source (V/Hz) 200/50,60 200/50,60 - 200/50,60
Required Air Pressure (MPa) 0.5 0.5 0.5 0.5
Note 1 Relation list between bolster thickness and die height
Note 2 Subplate weight is included
