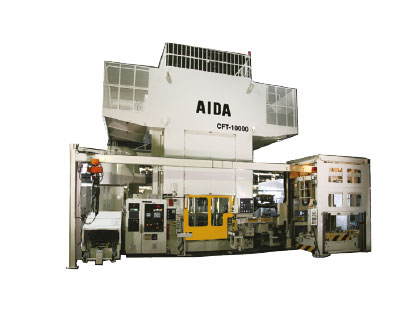

Cold Forging Transfer Press CFT
/data/prod/gallery/1554457130_cold-forging-press-1.jpg
Cold Forging Transfer Press CFT
Effectively combine cold forging with transfer processing methods

AIDA’s strict quality management ensures the product accuracy and quality stability
  • Product Description

Outline
Effectively combine cold forging with transfer processing methods

AIDA’s strict quality management ensures the product accuracy and quality stablility


Advantages
  1. 2-point suspension and high-rigidity frame
  2. Outstanding deflecting load ability extends die life remarkably.
  3. Adopt mature high-efficiency transfer technology.


Specification
Model CFT-400 CFT-600 CFT-800 CFT-1000 CFT-1200
Capacity (ton) 400 600 800 1000 1200
Tonnage Rating Above B.D.C (mm) 7 7 7 7 7
Stroke Length (mm) 250 250 250 250 250
Stroke Per Minute (mm) 30~45 30~45 25~35 25~35 20~30
Die Height (Stroke Down, Adjust Up, Slide To Bolster) Max. (mm) 600 650 650 650 650
Slide Adjustment (mm) 30 30 30 30 30
Slide Area (LR x FB) (mm) 1200 x 750 1200 x 750 100 x 750 1500 x 1000 1500 x 1000
Bolster Area (LR x FB) (mm) 1200 x 900 1200 x 900 1200 x 900 1500 x 1100 1500 x 1100
Bolster Thickness (mm) 140 155 165 180 180
Knockout Capacity (ton) 20 (Max At 10 Each Stage) 30 (Max At 15 Each Stage) 40 (Max At 20 Each Stage) 50 (Max At 25 Each Stage) 60 (Max At 30 Each Stage)
Floor To Top Of Bolster (mm) 800 800 800 800 800
Main Motor (kW) 55 75 90 110 130
